機器用途

Application

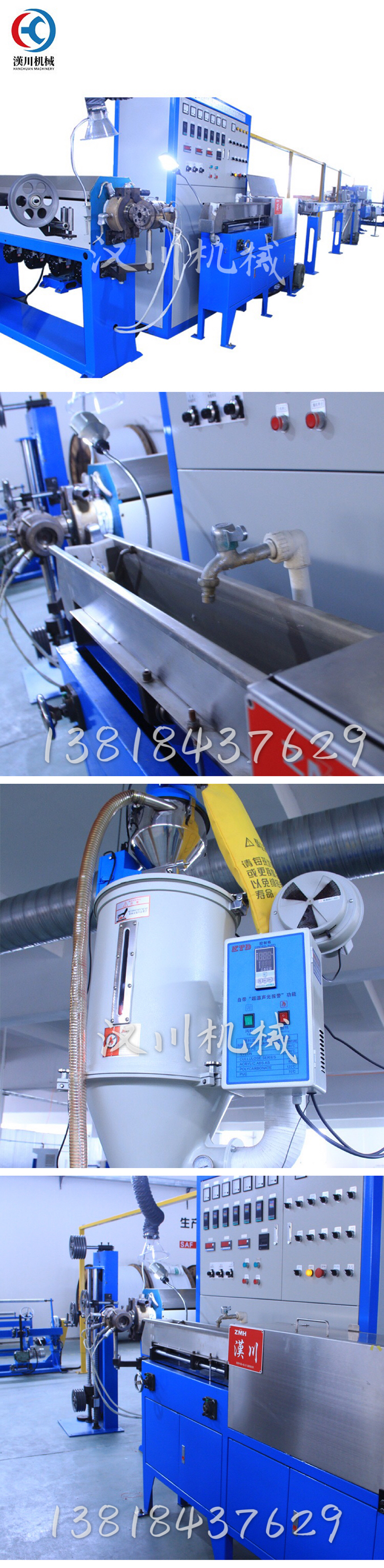

無錫擠出機，适用于鐵氟龍高溫電子線絕緣押出或外被護套押出

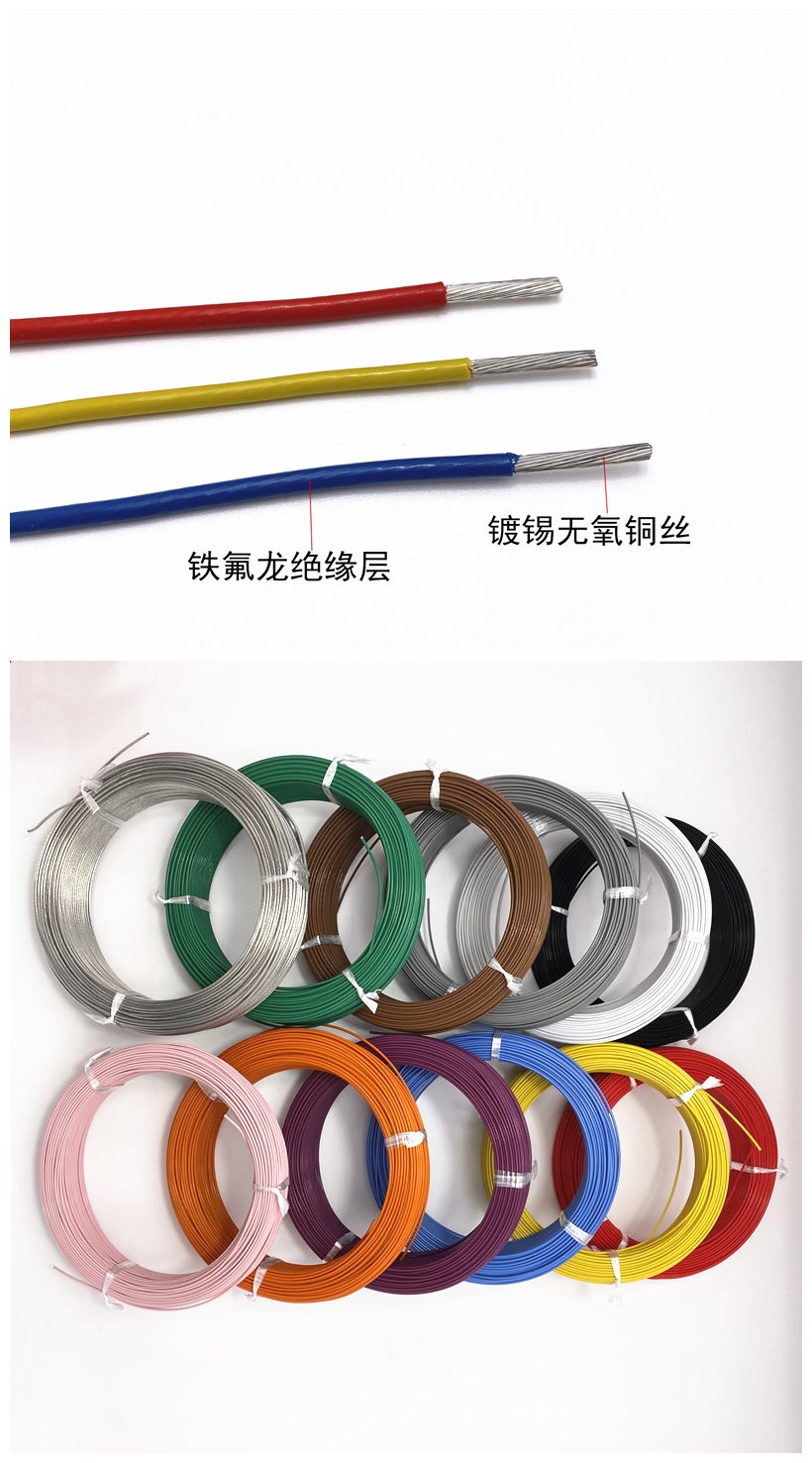

Suitable for teflon high temperature electrical wire insulation  out sheath extrusion

芯線規格

Core wire specification

Φ0.8-2.5mm

Φ1.0-3.0mm

Φ1.5-5.0mm

Φ2.0-8.0mm

押出材料

Extrusion material

FEP、PFA

螺杆材料

Screw material

德國Hastelloy-276(哈氏合金)/美國Inconel-600(英科乃爾)/中國GH113(新3号鋼)

German Hastelloy - 276 (hartz alloy)/American Inconel - 600 (Inconel)/China GH113 (new steel no. 3)

螺杆長徑比

Screw L:D ratio

(24-27):1

(24-27):1

(24-27):1

(24-27):1

溫控段數(機筒+機頭)

Temperature control section number (Barrel + Nose)

4+2

4+2

4+2

4+2

加熱功率

Heating power

15KW

18KW

18KW

25KW

主機動力

Main machine power

7.5KW

11KW

15KW

18.5KW

引取機動力

Leading power

2.2KW

2.2KW

2.2KW

3.7KW

高産量

Max output

25KG/H

35KG/H

45KG/H

100KG/H

高線速

Max line speed

180M/MIN

180M/MIN

180M/MIN

180M/MIN

活動水槽

Active sink

恒溫活動水槽,加熱功率6KW,移動量400,總長度1.7M,配雙段式拭水器

Thermostatic activity sink, heating power 6 kw, amount ofmovement 400, total length 1.7 M, equipped with double sections of water finder

U型水槽長度

U type sink length

10M

10M

10M

15M

蓄線參數

Storage parameters

Φ120~250蓄線輪,固定輪10溝+移動輪11溝,水平或立式輕軌式蓄線架,長度9M,蓄線量180M

Φ 120 ~ 250 wire storage wheel, fixed wheel 10 groove + move wheel 11 groove, horizontal  vertical line storage rack, 9 m in length, line storage quantity 180 m

放線型式

Pay off type

無軸磁粉張力 線盤：Φ 800-Φ 1250，有軸式或無軸式動力放線,機械擺杆結構,移動滑塊調節放線張力 , 配導體張力顯示,斷線保護,适用于Φ300~500線軸

Shaftless magnetic powder tension, bobbin:Φ 800-Φ 1250, Shaft orshaftless power pay-off, mechanical pendulum rod structure, move slider adjust pay-off tension, equipped the conductor tensionshow,wire break protection, suitable for Φ300 ~ 500 bobbin

收線型式

Take up type

無軸式：Φ 800-Φ 1250,雙軸式收線,3HP馬達配變頻調速,米到停機,光杆排線,适用于Φ300~500線軸

Shaftless type:Φ 800-Φ 1250,Double shaft take up,3HP motor withfrequency control, meters arrive,it stop,Polished rod traverse line,suitable for Φ300 ~ 500bobbin

整機尺寸(長X寬X高)

Whole machine(LXWXH)

20000 X 1500 X 2100

20000 X 1600 X2100

20000 X 1700 X 2100

20000 X 2500 X 2100

整機重量

Machine weight

4.5T

5T

6T

6.5T
