旋框單絞機

  • 所屬分類:旋框單絞(成纜)機系列
  • 浏覽次數:254
  • 發布時間:2023-04-26 10:03:45
  • 産品概述

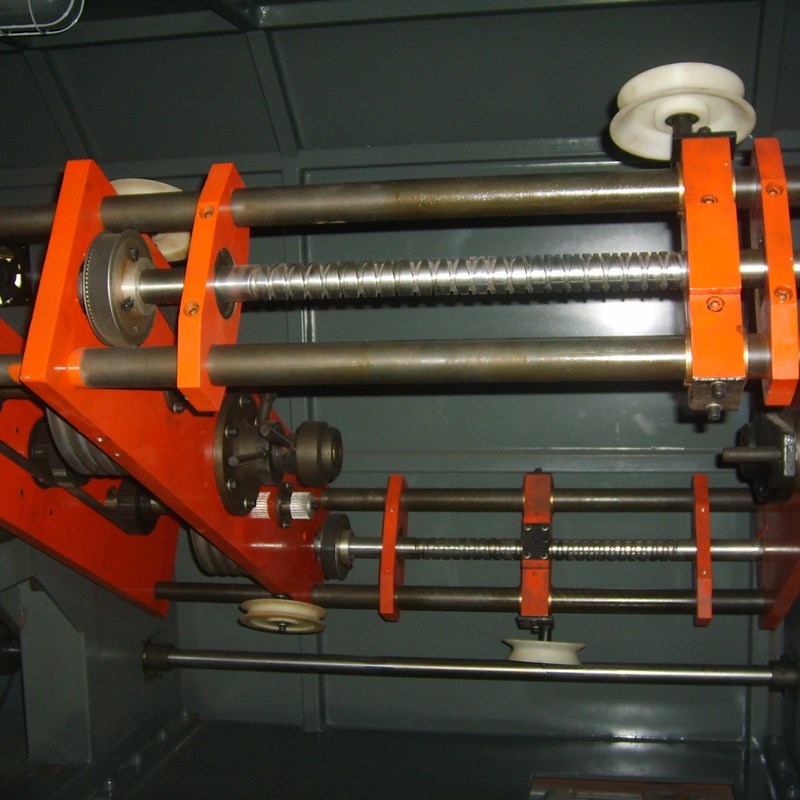

ZMHΦ630mm-Φ1250mm 高速旋框單絞機

ZMHΦ630mm-Φ1250mm High speed single twisting (cabling) machine

用途:

繞包機,計算機電纜,橡套電纜,KVVRP,KVVR,RVV,KVV等控制電纜的絞合和包帶,若與退扭機聯動使用适合各種數據電纜成纜及包帶用。

Application:

Suitable for twisting  wrapping control cable, such as the computer cable,rubber sleeve cable,KVVRP,KVVR,RVV,KVV, If used with back twisting machine, it is suitable for cabling  wrapping all kinds of date cable.

特點:

結構緊湊,造型美觀,轉速高,振動小,噪音低,适用性強,是目前電工機械行業單絞機系列規格大的産品,已申請中華人民共和國結構新型zhuanli。

Features:

Compact structure, beautiful appearance, high rotate speed, small vibration, low noise, wide applicability, it is the biggest product in the electrical machinery industry of the single twisting machine specification, it has been applied for patent of People's Republic of China.

機器型号

Machine type

ZMH-630mm

ZMH-800mm

ZMH-1000mm

ZMH-1250mm

供線軸尺寸

Pay off bobbin size

Φ400mm-Φ500mm

Φ400mm-Φ500mm-Φ650mm

Φ500mm-Φ630mm

Φ500mm-Φ630mm

收線軸尺寸

Take up bobbin size

Φ630mm

Φ800mm

Φ1000mm

Φ1250mm

适用線徑

Suitable for the wire diameter

Φ0.6mm-Φ3.0mm

Φ0.6mm-Φ4mm

Φ0.6mm-Φ5mm

Φ0.8mm-Φ6mm

絞合外徑

Max twist outer

Φ12mm

Φ15mm

Φ20mm

Φ30mm

回轉速

Rotate speed

650rpm

550rpm

400rpm

350rpm

收線張力

Take up tension

氣動張力自由調節

Pneumatic tension can be adjustable freely

氣動張力自由調節

Pneumatic tension can be adjustable freely

氣動張力自由調節

Pneumatic tension can be adjustable freely

氣動張力自由調節

Pneumatic tension can be adjustable freely

排線方式

Traverse type

絲杆往複運動

Screw reciprocating motion

絲杆往複運動

Screw reciprocating motion

絲杆往複運動

Screw reciprocating motion

絲杆往複運動

Screw reciprocating motion

絞線方向

Twist direction

“S” “Z”向可自由選擇

Left  right can be selected freely

“S” “Z”向可自由選擇

Left  right can be selected freely

“S” “Z”向可自由選擇

Left  right can be selected freely

“S” “Z”向可自由選擇

Left  right can be selected freely

絞距

Twist pitch

20mm-200mm

30mm-300mm

30mm-350mm

50mm-550mm

包袋裝置

Taping device

中心繞包或側包

Centre tapping  side packing

中心繞包或側包

Centre tapping  side packing

中心繞包或側包

Centre tapping  side packing

中心繞包或側包

Centre tapping  side packing

S、Z向可自由選擇

Left  right can be selected freely

S、Z向可自由選擇

Left  right can be selected freely

S、Z向可自由選擇

Left  right can be selected freely

S、Z向可自由選擇

Left  right can be selected freely

适用、銅帶、聚脂代、透明帶、雲母帶、鋁箔、無紡布等

Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc

适用、銅帶、聚脂代、透明帶、雲母帶、鋁箔、無紡布等

Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc

适用、銅帶、聚脂代、透明帶、雲母帶、鋁箔、無紡布等

Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc

适用、銅帶、聚脂代、透明帶、雲母帶、鋁箔、無紡布等

Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc

盤徑:Φ400mm

孔徑Φ50mm

寬度Φ8-30mm

Bobbin size:Φ400mm

Hole size:Φ50mm Width:Φ8-30mm

盤徑:Φ450mm

孔徑Φ50mm

寬度Φ8-30mm

Bobbin size:Φ450mm

Hole size:Φ50mm Width:Φ8-30mm

盤徑:Φ500mm

孔徑Φ50mm

寬度Φ8-30mm

Bobbin size:Φ500mm

Hole size:Φ50mm Width:Φ8-30mm

盤徑:Φ500mm

Bobbin Bobbin size:Φ500mm

整機重量

Machine weight

2.5T

3.5T

4.5T

6T
