技(jì )術參數說明

Main technical parameters

1. 用途：銅線、鋼絲、纏繞用

1. Application:winding the copper wire,steelwire

2. 适用芯線：3-15mm

2. Suitable for core wire: 3-15mm

3. 适用鋼絲：0. 2-2mm

3. Suitable for copper wire: 0. 2-2mm

4. 纏繞絞距：PLC無極調節50-350mm

4. Winding lay length: 8. 50mm-40mm

5. 動力：53千瓦，變頻調速

5. Power: 53KW frequency conversion speed regulation

6. 回轉速：500rpm

7. Rotate speed: 800rpm (The highest speed in the Asia)

7. 電源供應：三相380V, 50HZ

8. Power supply: 3 phase 380V 50Hz

機械構成：

Machine composition:

1. 放線部分（芯線線盤）

1. Placing-out part (core wire disc)

 A: 适用線盤

東

A: Suitable for the wire bobbin

1. 芯線盤：1000x750x80mm

1. Core wire bobbin: 1000x750x80mm

2. 鋼絲線盤： (配合現品）

2. Copper wire bobbin: (Cooperate with existing product)

B: 放線張力：機械式無級可調

B: Pay off tension: Mechanical stepless adjustable

C: 鋼絲頭：客戶指定

C: Copper wire head: Customer-specified

2. 收線部分

2. Take up part

A: 适用線盤（常規）1250x950x120mm

50

A: Suitable for wire bobbin: 1250x950x120mm

B: 收線張力：差速式無級可調

B: Take up tension: Mechanical stepless adjustable

C: 排線形式：往複（雙向）導軌排線

C: Traverse type: (double direction)Guide wire

電器控制部分

Electrical equipment control part

1. PLC控制，觸摸屏操作顯示

1. PLC control,touch screen operation display

 2. 絞距，在線無極調節

2. Stranded distance,on-line infinite adjustment

3. 斷線米數到位報警自動停機

3. When the meter of broken wire is in place,the alarm will stop automatically.

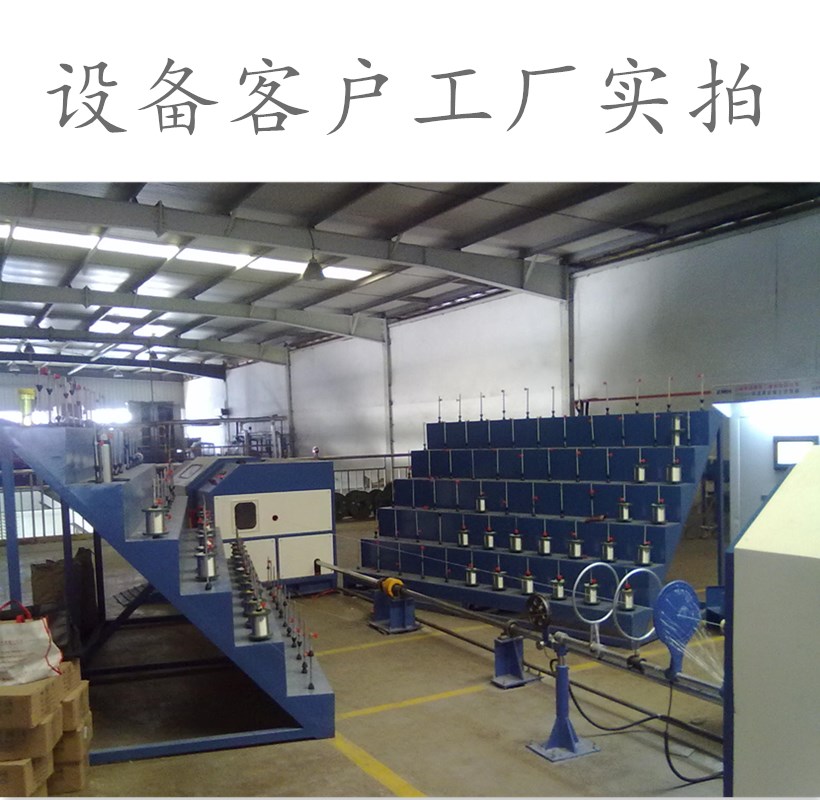

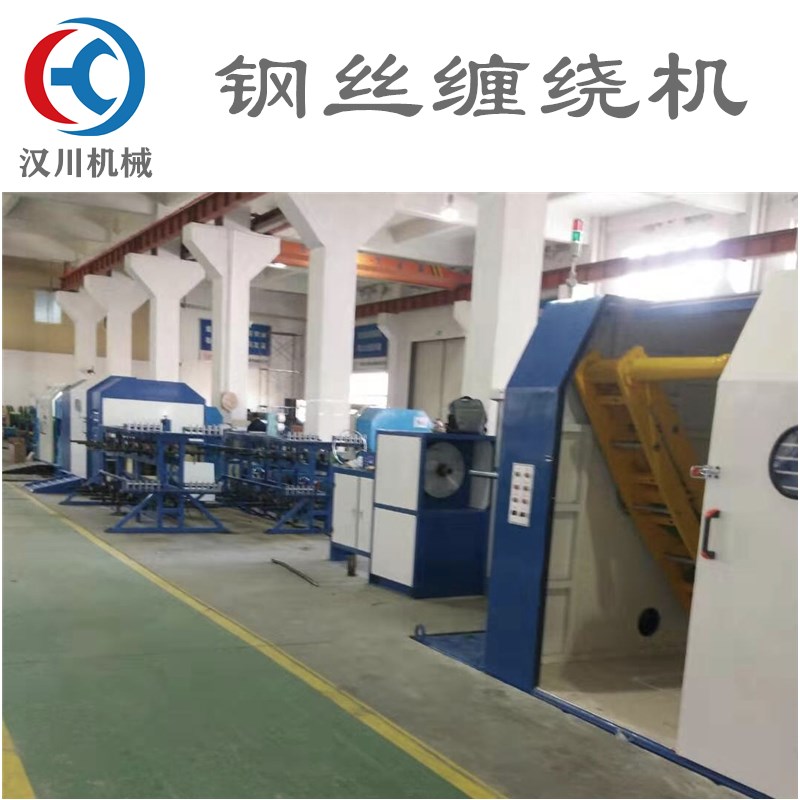

點擊此處查看鋼絲纏繞機産品視頻：
